Rotary Solenoids, Swing Solenoids

Swing Solenoids / Rotary Solenoids Part # Output Torque & Power Graph Function or Application
AZ0616S-24A20-B
Rotary Swing Solenoids for ATM etc.
  AZ0616S-24A20-B
Rotary Swing 20°±2
Move force 0.02NM
Powe ON Holding force 0.02NM
Power OFF Holing Force 0.06NM
Pin Φ5.5 15 M3,
Cable-90 UL1332 连接器A2502H-2P
Cross Ref. FRZ-034531

AZ0616S-24A20 20° 12ms, 40mNM Pin Φ6 15-3 M3, Cable-600 取消温控   AZ0616S-24A20-A 20°±2 启动0.02NM 通电保持力 0.02NM 断电保持 0.06NM Pin Φ5.5 15 M3, Cable-75 UL1332 连接器SM-3P
AZ0616S-24B20 20° 15ms F 0.06NM Pin Φ6x15-10 M3 温控器127° Cable 320   AZ0616S-24B20-A 20° 启动0.02NM 通电保持力 0.02NM 断电保持 0.06NM Pin Φ6x15-10 M3 Cable 320 寿命1百万次
AZ0616S-24B20-C 旋转20° 启动力 0.02NM 通电保持力 0.02NM 断电保持力 0.06NM Pin Φ6 15 12 M3, Cable 204   AZ0616S-24B20-D 旋转18° 18度 启动力 0.2NM 通电保持力 0.2NM 断电保持力 0.06NM
AZ0616S-24C20 20° 15mS 40mNM Pin Φ6x15-10 3   AZ0616S-24D20 20° 15ms F 0.02NM 0.015NMk 0.06NMk 127度温控器 Connector 220
AZ0616S-24H20 16° 15mS 40mNM Pin Φ6x10-6.3 F   AZ0616S-24J20 20° 15mS 0.02NM 0.06NM 0.015NM 25% F Φ6 15 10 3 温控127° 不同AZ0616S-24D20电线
AZ0616S-24J20-A 20° 15mS 0.02NM 0.06NM 无通电保持力0.015NM 25% F Φ6 15 10 3 温控127° 不同AZ0616S-24D20 电线 125mm
Swing Solenoids used for Coin Payphone
Weight 64 grams

Swing Solenoid

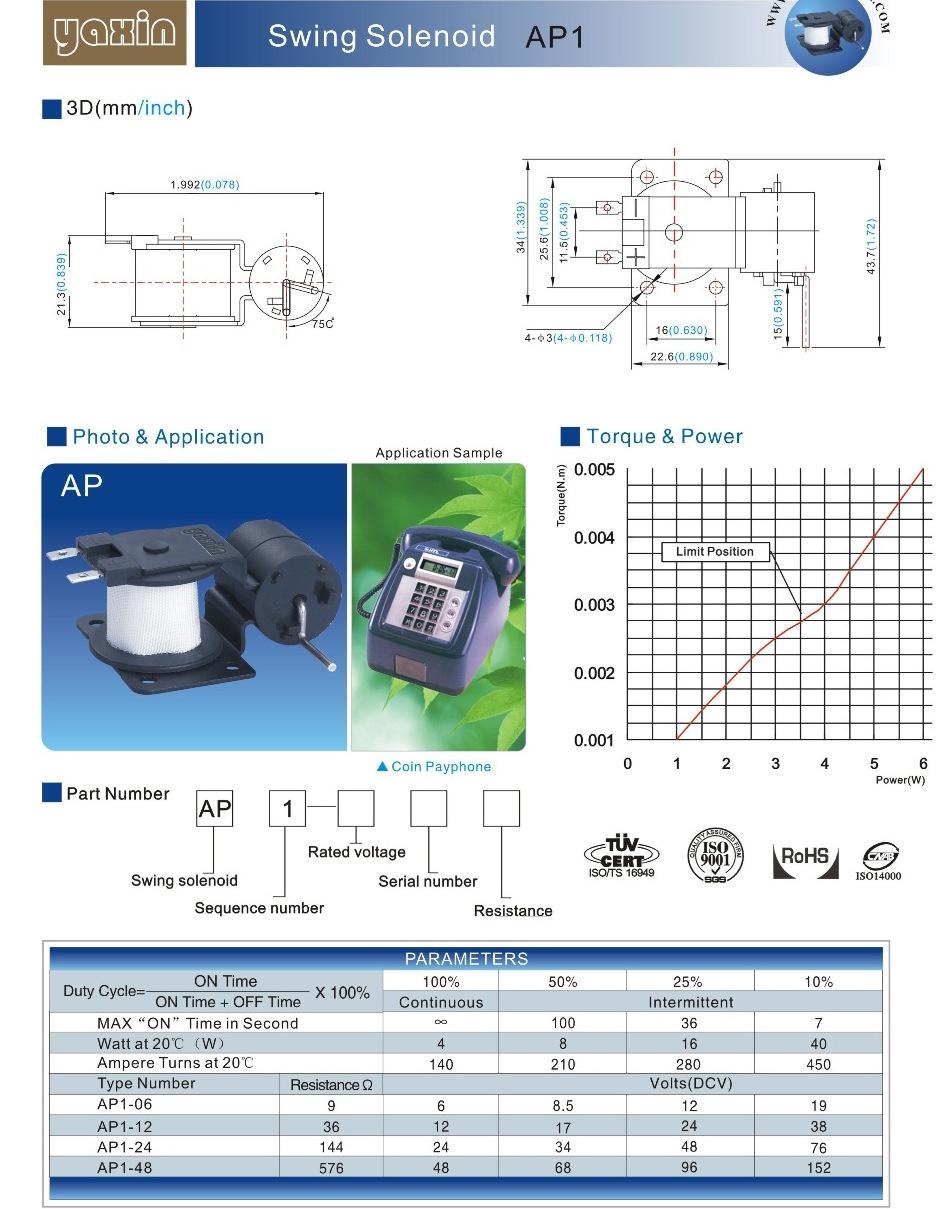

AP1

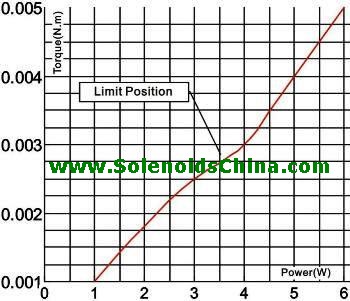

Output Torque & Power Graph

Bistable Swing / Rotary Solenoids

Used for Payphone

Vending Machine, Coin Activated Machines

Swing Solenoids used for Coin Payphone
Weight 64 grams

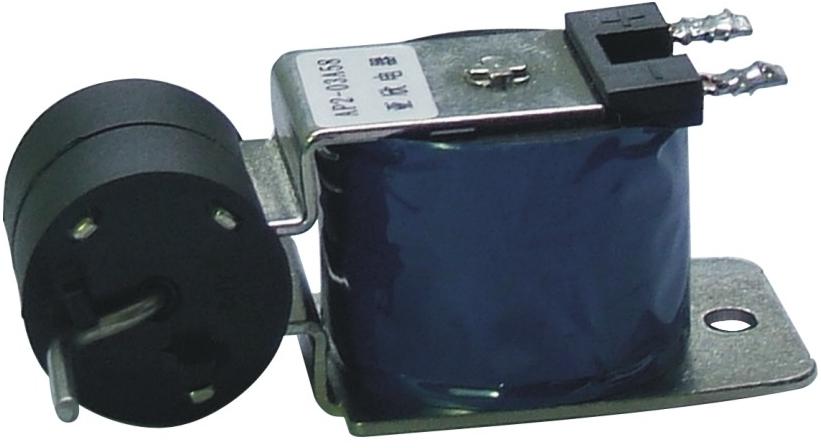

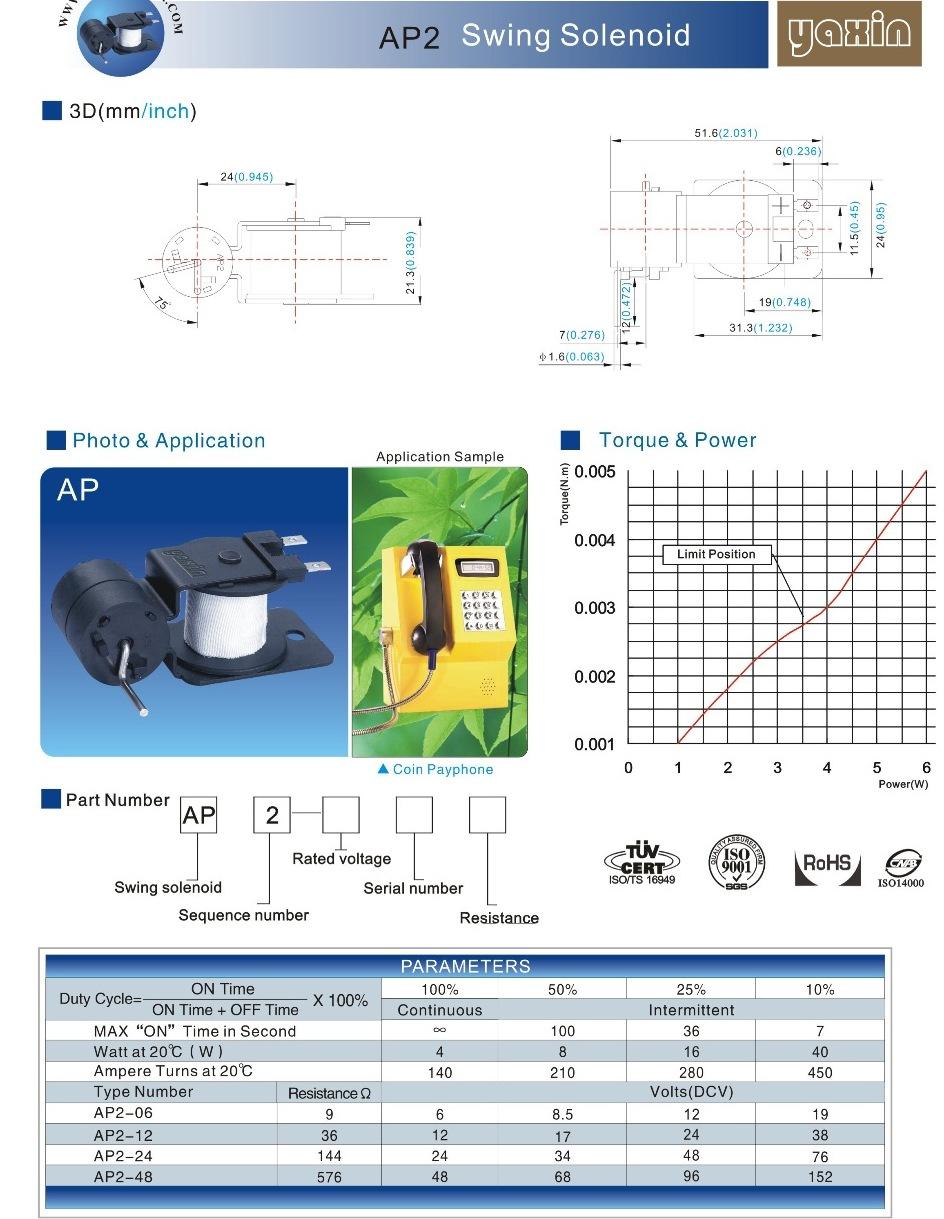

AP2-03B58 20gxR 5gk 75degree

Swing Solenoid

AP2

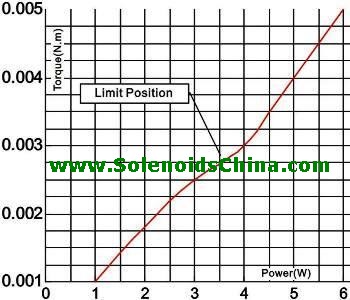

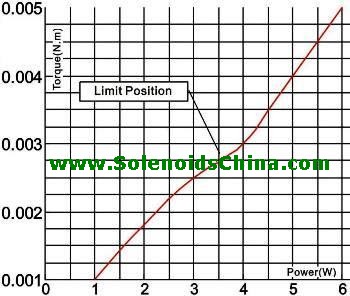

Output Torque & Power Graph

Bistable Swing / Rotary Solenoids

Used for Payphone

Vending Machine, Coin Activated Machines

Swing Solenoids used for Coin Payphone
Weight 33 grams

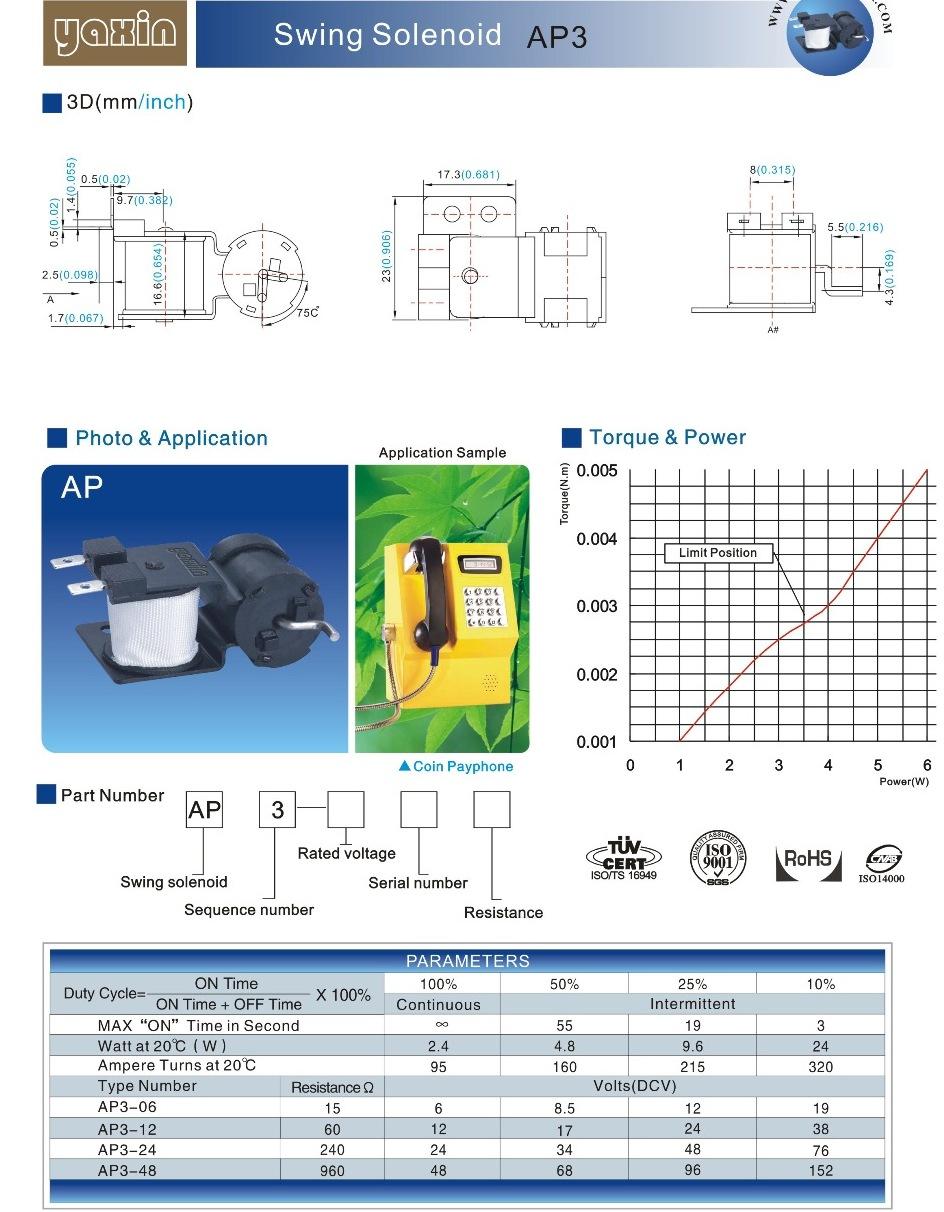

AP3-03B58 18gxR,5gk 60 degree
AP3-03C60 25gxR,5gk 80 degree

Swing Solenoid

AP3

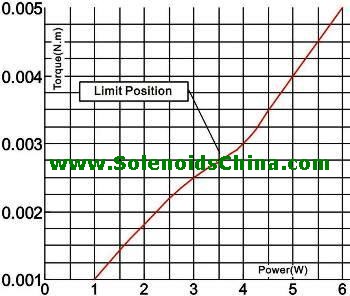

Output Torque & Power Graph

Bistable Swing / Rotary Solenoids

Used for Payphone

Vending Machine, Coin Activated Machines

Swing Solenoids used for Coin Payphone
Weight 33 grams

Swing Solenoid

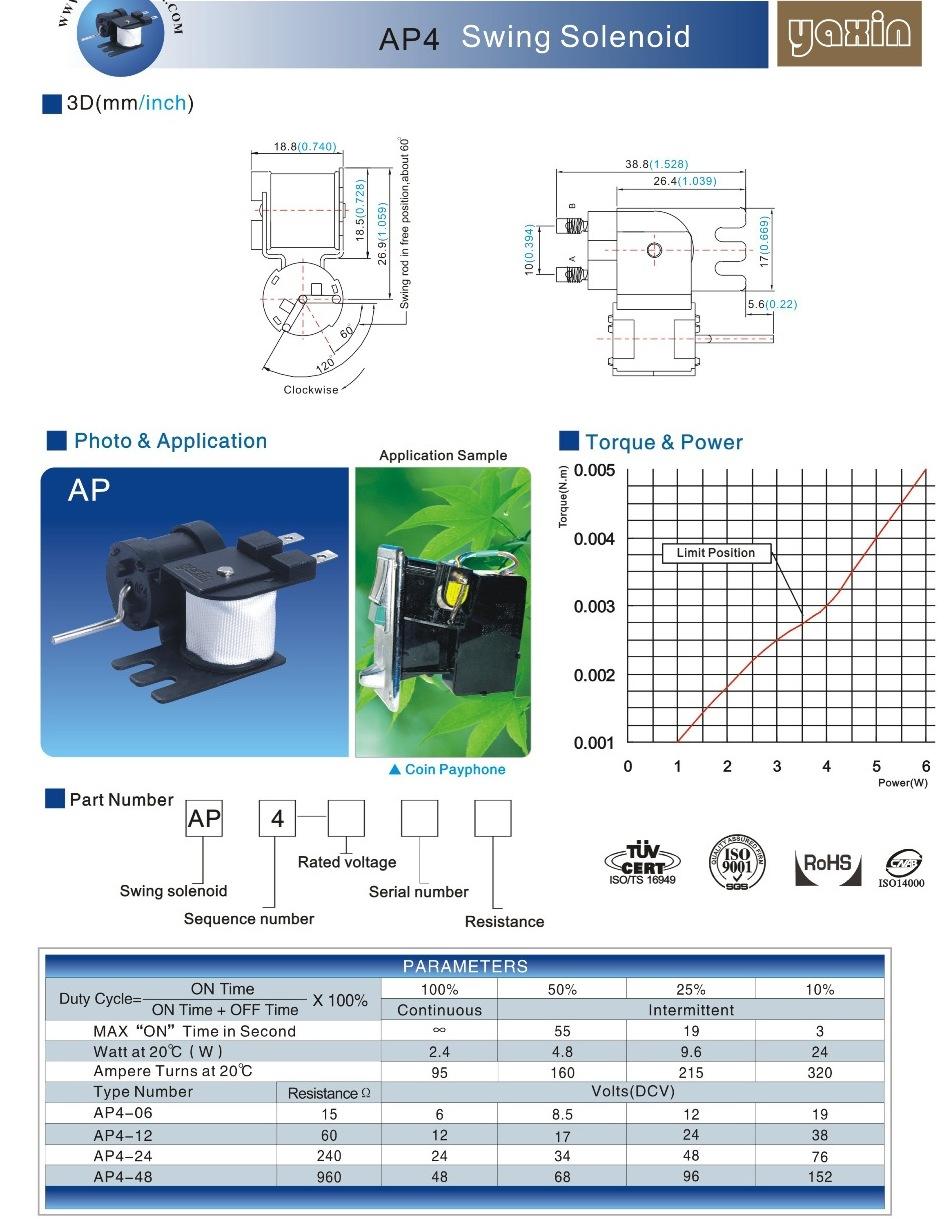

AP4

Output Torque & Power Graph

Bistable Swing / Rotary Solenoids

Used for Payphone

Vending Machine, Coin Activated Machines

Moving Coil Linear Solenoids, Pull Solenoid & Push Solenoids This is not a Swing Solenoid, it is related as used for payphone. AD2822S

Φ28*22
puSh
Force & Stroke Graph of Solenoid Coin Acceptor for Payphone MS-16 Electronic Coin Mechanism

  AZ3015S   照相机快门
Rotary Solenoid AZ4820 frm China AZ3415S
AZ3415L
H-2126-032, H-2276-032
Rotary Solenoid AZ4820 frm China AZ3422S AZ3422L
  AZ3828
  Rotary Solenoid

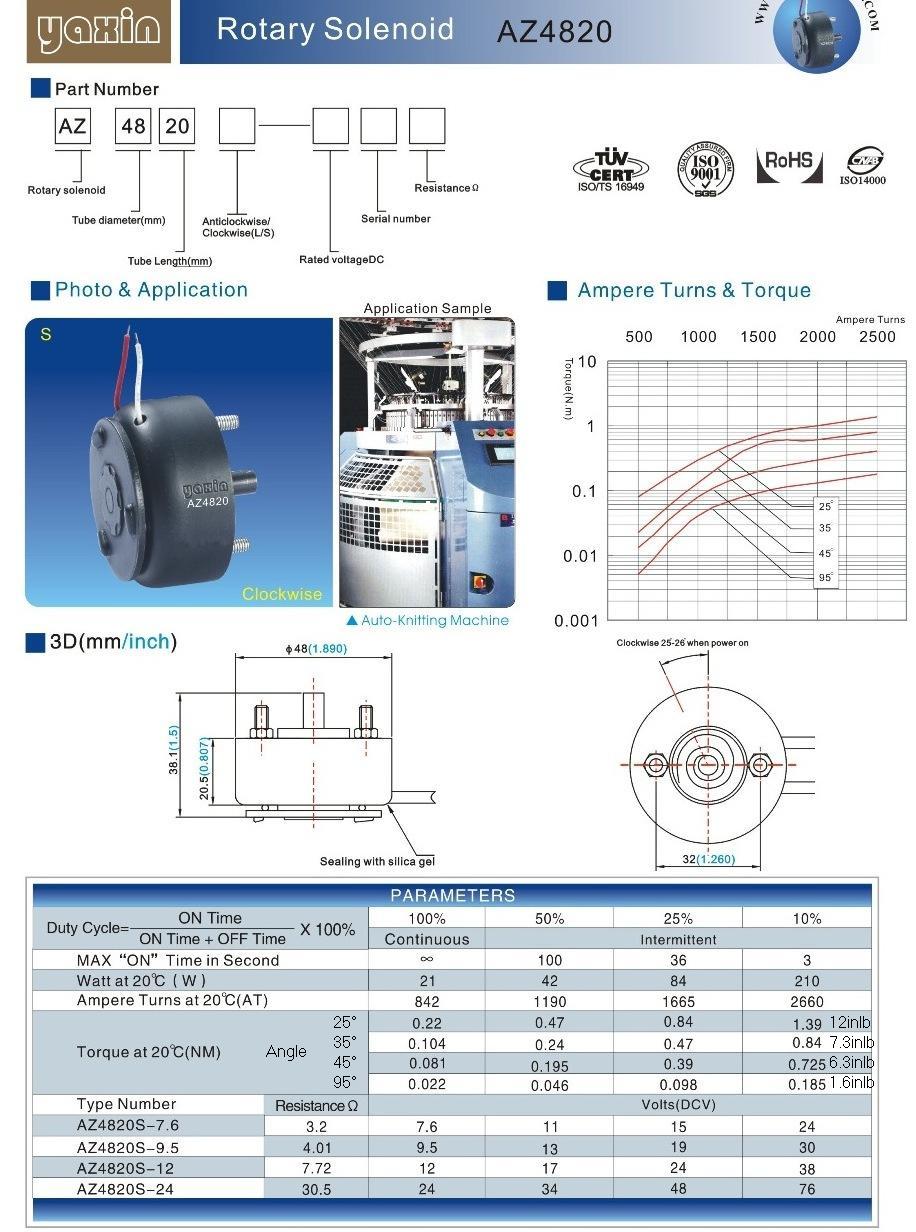

AZ4820S

Rotary Solenoid AZ4820 frm China AZ4921S
AZ4921L

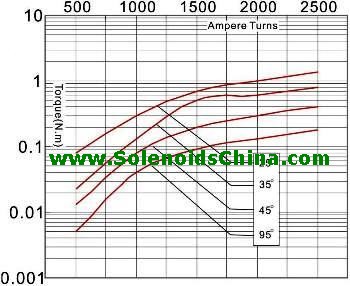

Output Torque & Ampere Turns Graph Rotation Angle 25°
Cross Ref.: Ledex Saia Burgess 5S 5B
Shih Shin SH-RT4927
  AZ7038S Rotation Angle 25°
Cross Ref.: Ledex Saia Burgess 7S
Shih Shin SH-RT7045
