Solenoids Valves, Solenoid Valves, Valve Solenoid

Solenoid Valves (Solenoid Driven Valves)
Solenoid Powered Valves
Part # Function or Application
Solenoid Valve AF0415L AF0415L Normal Open Valve
Nozzle OD 3, ID 1.1mm
DN 0.6mm
300mmHg,
50cc Tank, 2.5s, Drop to 15mmHg
Leakage: 3mmHg / 60 Sec, with 50cc Tank,
Solenoid Valves 3 Ports AF0425S AF0425S 3 Ports, 4.3 distance
Nozzle OD 2mm, ID 1mm, DN 1mm
3.3V, 0.54w, 50% ED
25 PSI / 1.72 Bar / 172 kPa / 1293 mmHg
Flow Rate: >4L/min. 10 PSI
  AF0429L AF0429L-04A25
AF0429L-04A45
AF0429L-05A25

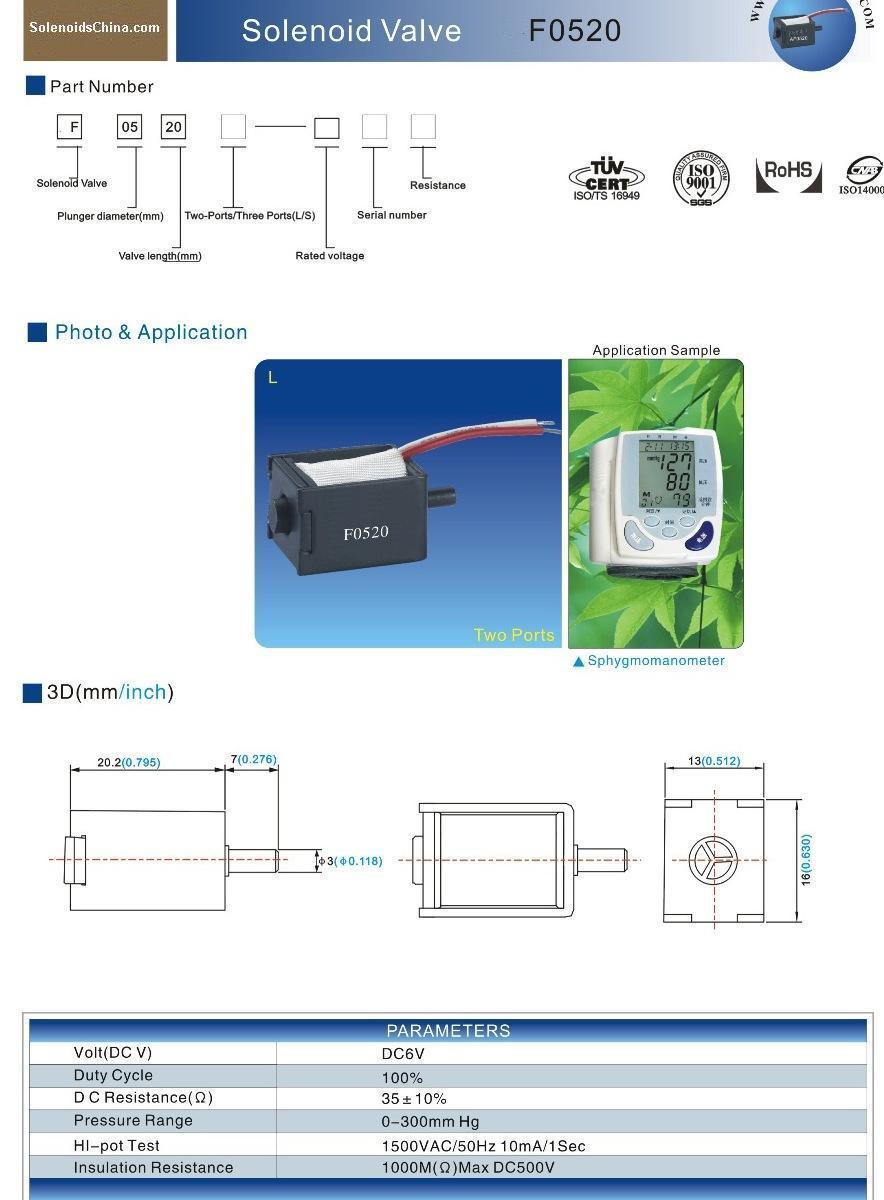

Solenoid Valves AF0520SSolenoid valves AF0520S AF0520L Solenoid Valves, Normal Open
Size: 20*16*13
( Excl. Nozzle Φ3/Φ1.6 *7 )
AF0520L-06A35
6.77 PSI / 0.47 Bar / 46.7 kPa / 350 mmHg,
340cc, 5S from 340 to 3 mmHg
Size: 20*16*13 mm (excl nozzle Φ3/Φ1.6 *7)
Nozzle to Open Air
AF0520AL Solenoid Valves, Normal Closed
AF0520AL-06A100 300 mmHg,
500cc, 6S from 300 to 15 mmHg
L型进出口 AF0624L AF0624L-12A300
    AF0626L-12D63
Solenoid Valves A837S AF0626S Gas Valves 2-Port / 3-Port, Massage Machine
Nozzle: OD Φ4, IDΦ2, DN 2mm
6.77 PSI / 0.47 Bar / 46.7 kPa / 380 mmHg
Flow 500 cc Tank, 3S from 380 to 15 mmHg
Leak 500 cc Tank, 4mmHg/30s, 380 mmHg
  AF0627S 24V, 1W; Flow 5L/min,
50 KPa, 7.25 PSI, 0.5 Bar
  AF0729L AF0729L-12A50(两位三通) 2 Positions 3 Ports
  AF0730L AF0730L-12A50X5
五联2位2通 Solenoid Valves
  AF0735L Rice Sorting Valves Machine
大米分选电磁阀
Solenoid Coils 电磁线圈 AF0818S AF0818S-ZS70
AF0818S-ZS149
AF0818S-ZS200

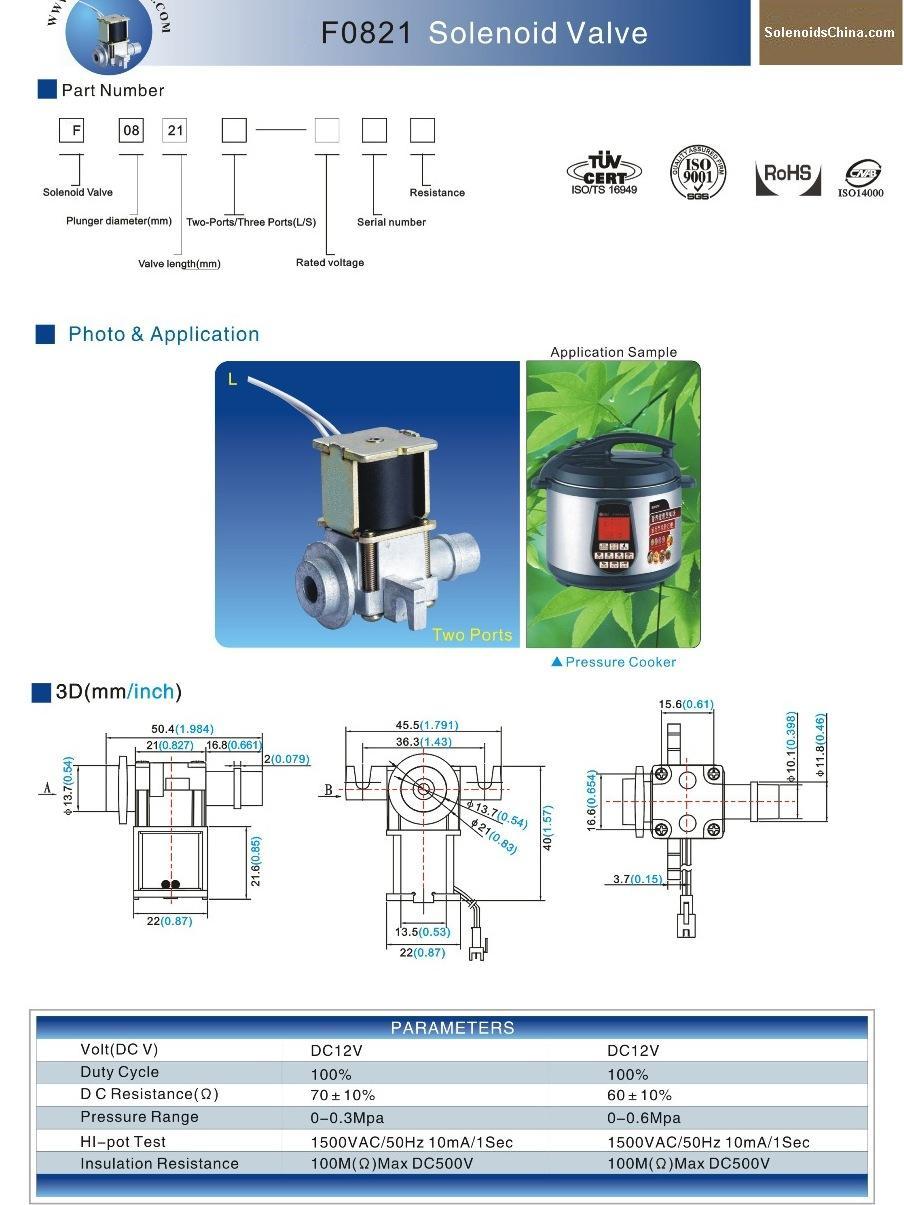

Solenoid Valves AF0821 AF0821L Solenoid valve 2-Port, Normal Open
Used for Pressure Rice Cooker
12V, 2W, DN 2mm
130 KPa / 1.3 Bar / 19 PSI / 975 mmHg
or 88 KPa / 0.9 Bar / 13 PSI / 662 mmHg
(180-230 kPa Release )
Flow: 7L/min, 3.5 kPa
  AF0824L Solenoid Vavle, Normal Close
Norzzle: OD 4/ID 2*6 L; DN 2mm
12V, 2W,
40 Kpa / 0.4 Bar / 5.80 PSI / 300 mmHg
Flow: 240ml / min, with 300 mm Height
Undercarriage Parts,
Electric Dexter Reverse Lockout Valve
  UFP Trailer Buddy 34500U PN 32220
12V 8W Orifice 1of32in 800 psi 55 Bar
    TieDown Solenoid Valve for Trailer
XF-302B PN 11286 12V 10W
Orifice 1/32in MOPD 800 PSI
Solenoid Valves AF0831 AF0831 Solenoid Valve, Normal Close,
Side Inlet, Other Outlet
12V, 3.6w, 100% ED,
10 KPa / 0.1 Bar / 1.45 PSI / 75 mmHg
Flow: 1500 ml / min, 1000 mmH2O
Solenoid Valves AF0834 AF0834 Solenoid valve 2-Port, Normal Open
Used for Pressure Rice Cooker
15V, 2.8 W, Life 1 Million, DN 2mm
120 KPa / 1.2 Bar / 17.4 PSI / 900 mmHg
(180-230 kPa Release )
Flow: 9L/min, 1.6 kPa
Leak: <3cc / min, 226 KPa / 2.3 bar
Solenoid Valves A837S AF0837L Foot Massage Basin, Nozzle ID, DN 3.4
Solenoid valve, 2-port, Normal Open,
Stroke 1mm, 12V, 20W, 10% ED
100 KPa / 1 Bar / 14.5 PSI / 750 mmHg
Flow: 150 ml / min, 30 mmH2O Height

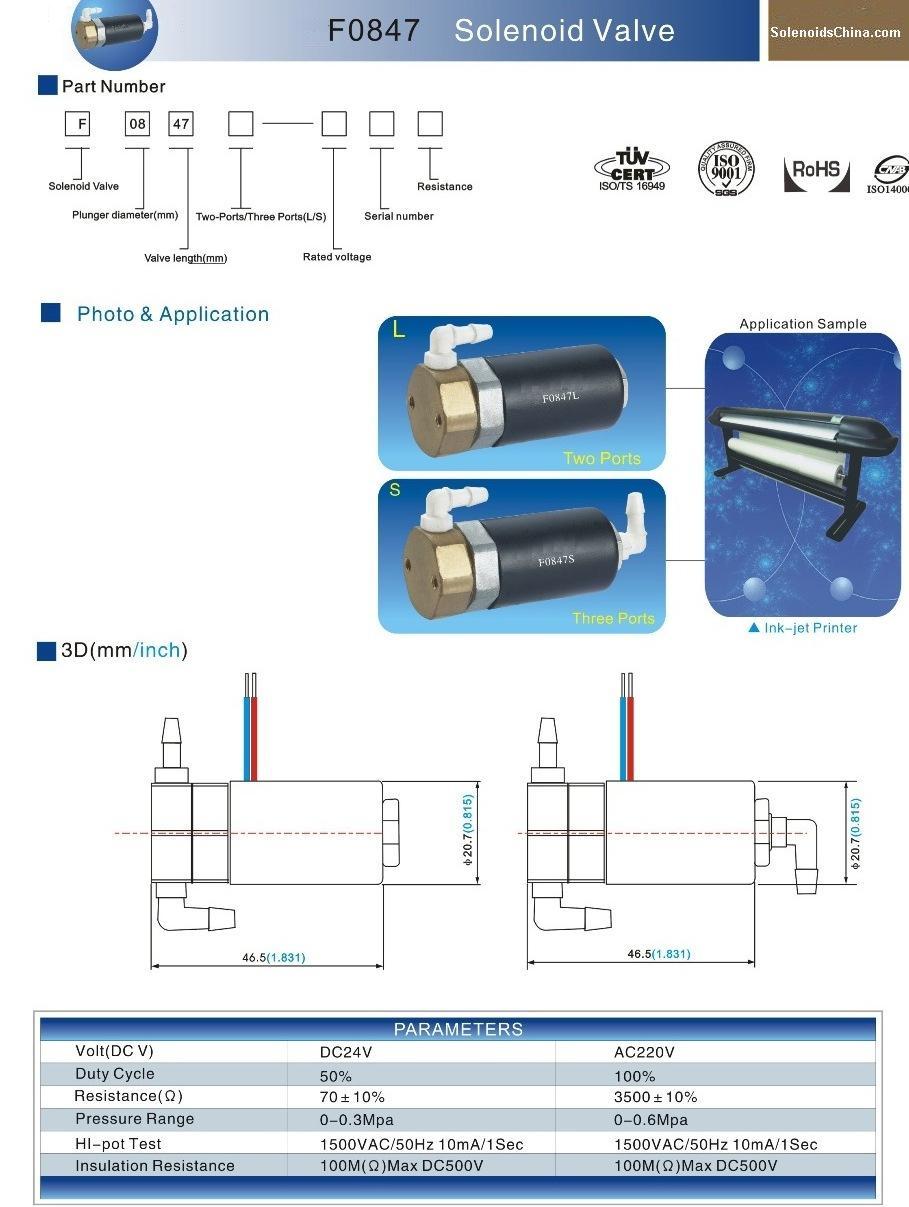

Solenoid Valves AF0847L AF0847L Solneoid Valve used for Ink jet plotter
2-port, Nozzle ID 2.4, tip 3.5, Barb 4.5mm
24V, 5.3w, 75% ED, Like 100K
400 KPa / 4 Bar / 58 PSI / 3000 mmHg

Solenoid Valves AF0847S AF0847S used for Ink jet plotter. Injet Plotter
3-port

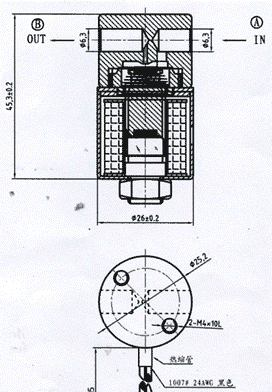

Φ26*45.3 AF0924L Solneoid Valve Normal Close, 2 Port
DN 0.5 mm,
24V, 5.76w, 100% ED:
600 KPa / 6 Bar / 87 PSI / 4500 mmHg
Solenoid Valves AF0928 AF0928 Solenoid Valve, Used for Coffee Machine
Normal Close, 2 Port
24V, 18W, ON 10S / OFF 20S
50 KPa / 0.5 Bar / 7.25 PSI / 375 mmHg
(700 KPa / 7 Bar ?)
Flow: 1L/min, 200 KPa / 2 Bar
Solenoid Valve Coils 电磁阀用线圈
IDØ11.9;Ø9.55  Hight Thick 24.6
AF1023L AF1023L-12A3.7
AF1023L-12A7.4
AF1023L-12A17.5
AF1023L-12A23
AF1023L-BL(蓝色)
AF1023L-R(红色)
Solenoid Coils 电磁线圈 AF1036L AF1036L-12A12
AF1036L-12C12
AF1036L-24A95
Solenoid Valves TSF-1040L-24A60.6
TSF-1040L-24B60.6
TSF-1040L-24A60.6
AF1040L

AF1040S
Solenoid Valve, Normal Close
Coffee Machine, Beverage Dispenser
Drinks Vending Machine, Life 1 Million
24V, 9.6W, On 8s / Off 1s
Adjustable Flow: 48ml/s to 6.5ml/s
Sealing 63 mmH2O
Ref Dispense Valves Series 400
Solenoid Valve AF1041L AF1041L

Solenoid Valve, Normal Close, 2 Port
Nozzle: Φ6,Φ8 * 13.3, Stroke 1mm
12V, 6W, 100% ED /
100 KPa / 1 Bar / 14.5 PSI / 750 mmHg
Flow: 450 ml / min, 100 mmH2O Height
Normal Open 24V,9.6W,50%ED
Stroke 1mm/ 200 KPa
Flow 600 ml / min, 300 mmH2O Height

AF1327L-24A29 AF1327L Inkjet Ink Jet Numbering Printing Machine
喷码机用电磁阀, 电磁铁驱动阀
  AF1345S AF1345S-24A60
  AF1718L 摩托车点火器 Engine igniter for Motorcycle
Solenoid Valves AF2630 AF2630 AL4 Auto Solenoid Valve &Transmission Part & Auto Part
AL4 / DP0 DPO EPC solenoid 0000257416
Latching Solenoid Pull and Hold Solenoid AK2022L

此产品为保持式电磁铁产品
本身不是电磁阀

此保持电磁铁用于自动水龙头电磁阀
自动感应水龙头电磁阀
0.8mm Stroke

  AF2542L AF2542L-12A36
AF2542L-24A145
  AF2630S AF2630S-12A01
  AF3049L AF3049L-24A138
  AF3059L AF3059L-24A138
Solenoid Valve AF3232 2 Ports for Drinking Water Dispenser AF3232

Solenoid Valve 2 Port, Normal
For Drinking Water Dispensing Machine
Auto Automatic water valves
Nozzle:
24V, 4.5w, 50% ED, DN 2.4mm
800 KPa / 8 Bar / 116 PSI / 6000 mmHg
550 ml / min, 1000 mmH2O Height

  VXF2160 Japan SMC VXF2160 27mm 24V 0.03~0.7MPa; Weight 600g
